The RTX 5090 measures 304 mm in length and occupies two PCIe slots in its Founders Edition form, while board-partner variants extend past 330 mm and occupy three to four slots with coolers up to 70 mm thick. A case built for the RTX 5090 must provide long GPU clearance, wide side-panel-to-motherboard spacing, and airflow capable of moving heat away from a graphics card with a TDP of up to 575 W.
This article reviews six PC cases suited to RTX 5090 builds: the Fractal Design Torrent, Lian Li Lancool 216, Montech AIR 903 MAX, Lian Li O11 Vision Compact, HYTE Y70 / Y70 Touch, and Corsair 7000D Airflow. Each case differs in GPU clearance, motherboard support, airflow layout, and price tier, ranging from budget-focused airflow cases to full-tower enclosures built for extreme cooling.
Each section below covers one case in detail, including its specifications, its compatibility with different motherboard sizes, and how it compares with the other cases in this list. A specification table, a pros list, and a cons list accompany every case to summarize its strengths and limitations.
The final section explains how to choose a case for an RTX 5090 build based on GPU length, cooling requirements, and motherboard form factor.
Best PC Casings for RTX 5090 Graphics Card

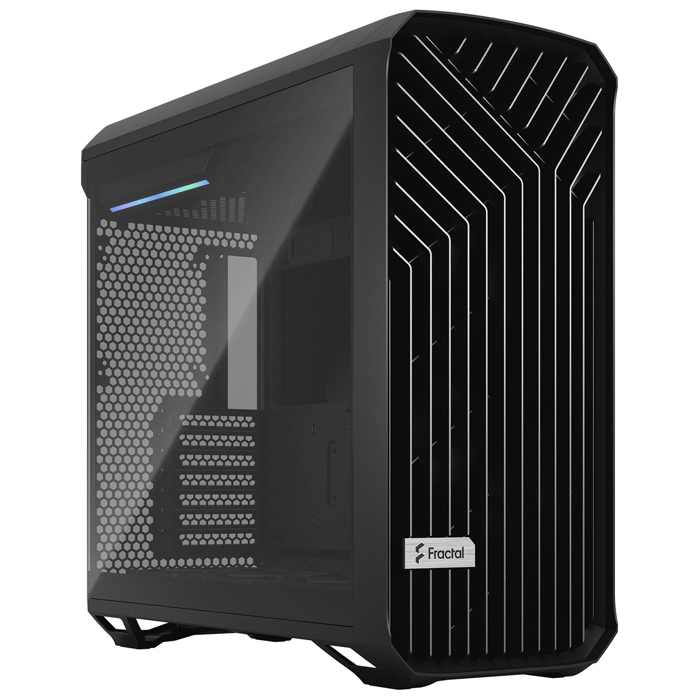

Fractal Design Torrent
CHECK PRICE
PROS
CONS
The following table summarizes the Fractal Design Torrent’s core specifications.
| Specification | Detail |
|---|---|
| Case type | Mid-tower |
| Motherboard support | Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB |
| Max GPU length | 423 mm (461 mm without front fan) |
| Max CPU cooler height | 188 mm |
| Max PSU length | 230 mm |
| Expansion slots | 7 (bridgeless) |
| Included fans | 2x 180 mm front, 3x 140 mm bottom |
| Radiator support | 360/420 mm front, 120/140 mm rear, 120/140 mm bottom |
| Storage | 4x 2.5″, 2x 3.5″ |
| Dimensions (L x W x H) | 544 x 242 x 530 mm |
The Fractal Design Torrent is a mid-tower airflow case built around an inverted layout, with the power supply mounted in a top chamber and dual 180 mm intake fans positioned at the front. The Torrent provides 423 mm of GPU clearance with its front fans installed, extending to 461 mm when the front fan bracket is removed. This clearance accommodates the RTX 5090 Founders Edition and the large majority of board-partner cards without modification.
The case supports Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, and SSI-EEB motherboards. E-ATX boards sit within the primary chamber alongside the GPU, and the seven bridgeless expansion slots leave room for RTX 5090 cards that extend into three or four slots. CPU cooler height clearance reaches 188 mm, and PSU clearance reaches 230 mm in the top-mounted chamber.
Airflow in the Torrent comes from two 180 mm Prisma AL PWM fans at the front intake and three 140 mm Prisma AL PWM fans across the case floor. This bottom-and-front intake configuration draws air directly across the GPU before it exits through the top-mounted PSU chamber, a layout that differs from the front-to-rear airflow path used in the Lancool 216 and the AIR 903 MAX. Compared with the Corsair 7000D Airflow, the Torrent trades absolute interior volume for a more GPU-focused airflow path, while offering less GPU length clearance than the 7000D Airflow’s 450 mm maximum.

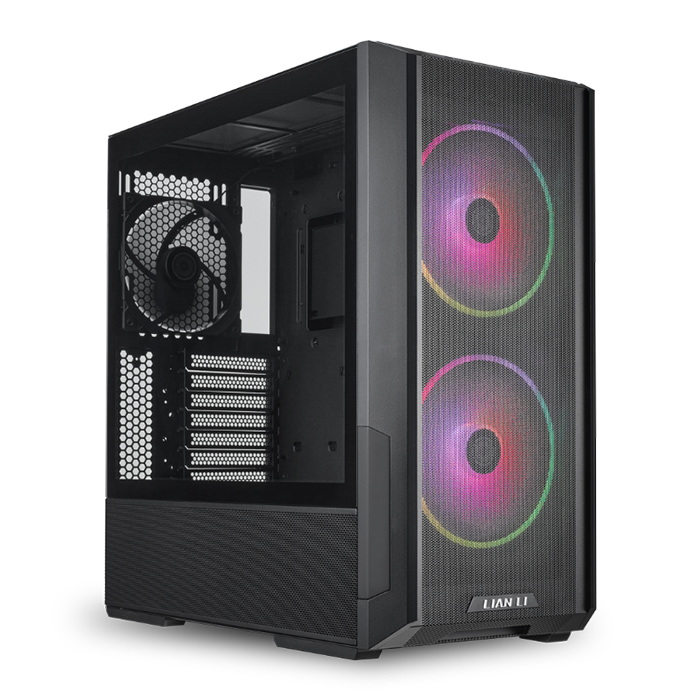

Lian Li Lancool 216
CHECK PRICE
PROS
CONS
The table below lists the Lancool 216’s specifications.
| Specification | Detail |
|---|---|
| Case type | Mid-tower |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX (under 280 mm width) |
| Max GPU length | 392 mm |
| Max CPU cooler height | 180.5 mm |
| Max PSU length | 220 mm (ATX) |
| Expansion slots | 7 |
| Included fans | 2x 160 mm front, 1x 140 mm rear |
| Radiator support | 360/280/240 mm front and top |
| Storage | 6x 2.5″, 2x 3.5″ |
| Dimensions (D x W x H) | 480.9 x 235 x 491.7 mm |
The Lian Li Lancool 216 is a budget mid-tower case with 392 mm of GPU length clearance, sufficient for the RTX 5090 Founders Edition and most board-partner cards under 390 mm. The case uses dual 160 mm front intake fans and a rear 140 mm exhaust fan to establish front-to-rear airflow across the GPU and motherboard.
Motherboard support includes ATX, Micro-ATX, and Mini-ITX as standard, with E-ATX boards under 280 mm in width fitting after the grommet bar is flipped 180 degrees. This E-ATX limitation places the Lancool 216 below the Fractal Design Torrent and the Montech AIR 903 MAX in maximum motherboard width, since both of those cases accept E-ATX boards without a width restriction. CPU cooler height clearance reaches 180.5 mm, and the case accepts ATX power supplies under 220 mm in length.
Seven expansion slots accommodate RTX 5090 cards up to four slots thick, and a rear PCIe fan bracket allows an additional 120 mm fan to cool the GPU directly. Vertical GPU mounting requires a separate PCIe 4.0 riser cable, which Lian Li sells apart from the case. Compared with the Montech AIR 903 MAX, the Lancool 216 offers a similar price point but 8 mm less GPU clearance and no true E-ATX support at full board width.

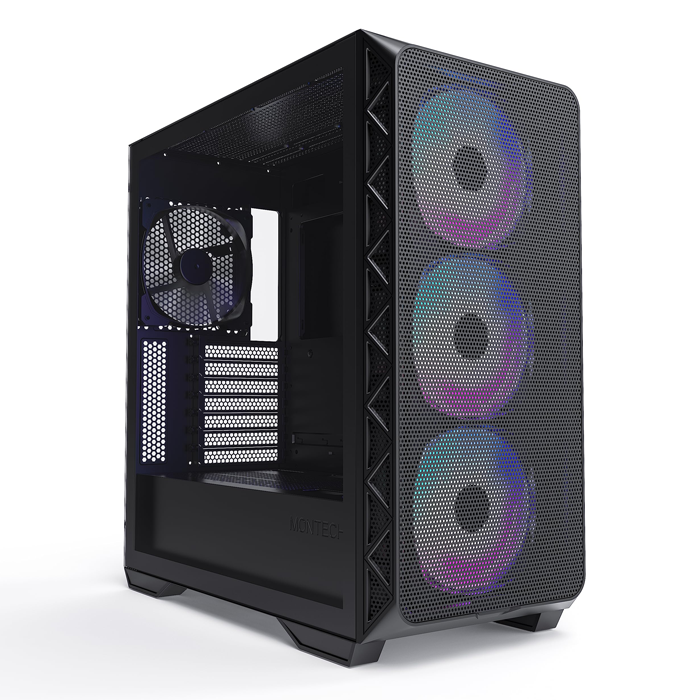

Montech AIR 903 MAX
CHECK PRICE
PROS
CONS
The following table summarizes the Montech AIR 903 MAX specifications.
| Specification | Detail |
|---|---|
| Case type | Mid-tower (E-ATX) |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-EEB, SSI-CEB |
| Max GPU length | 400 mm (190 mm width) |
| Max CPU cooler height | 180 mm |
| Expansion slots | 7 |
| Included fans | 3x 140 mm ARGB front, 1x 140 mm rear |
| Radiator support | 360 mm front, 360 mm top |
| Storage | 5x 2.5″, 2x 3.5″ |
| Front panel ventilation | 51% open area |
The Montech AIR 903 MAX is an E-ATX mid-tower case that accommodates GPUs up to 400 mm in length and 190 mm in width, a clearance figure that covers RTX 5090 cards with thick triple-fan or quad-fan coolers. The case supports E-ATX and SSI-EEB motherboards without a width restriction, a distinction from the Lancool 216’s 280 mm E-ATX limit.
Three 140 mm ARGB PWM fans at the front and one 140 mm PWM fan at the rear establish front-to-rear airflow through a metal front panel rated at a 51% ventilation area. CPU tower coolers clear up to 180 mm in height, and the front and top locations each support radiators up to 360 mm. Storage capacity spans five 2.5-inch drives and two 3.5-inch drives across three separate mounting zones.
Compared with the Fractal Design Torrent, the AIR 903 MAX offers a larger maximum GPU width allowance at 190 mm, useful for RTX 5090 cards with wide triple-slot coolers, though the Torrent provides more total pre-installed fans. Compared with the Lian Li Lancool 216, the AIR 903 MAX supports E-ATX motherboards at full width and offers 8 mm more GPU length clearance, at a similar entry price near $75.

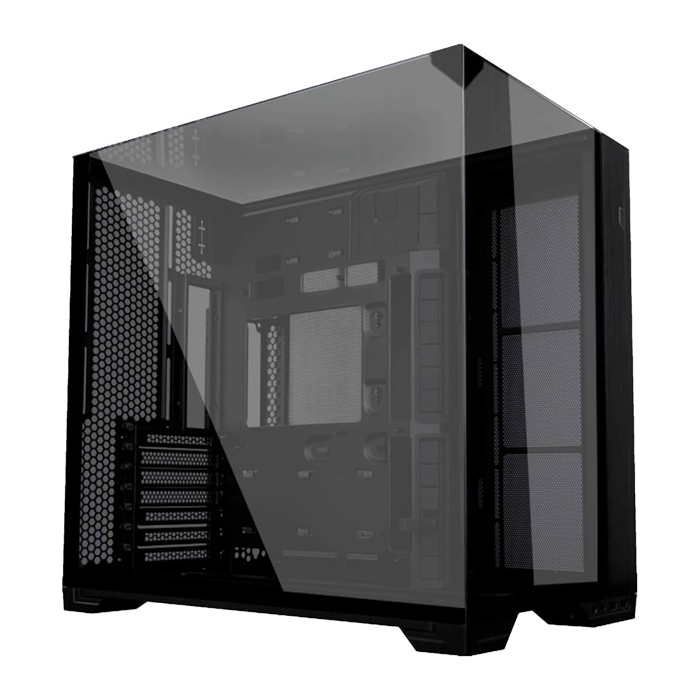

Lian Li O11 Vision Compact
CHECK PRICE
PROS
CONS
The table below lists the O11 Vision Compact’s specifications.
| Specification | Detail |
|---|---|
| Case type | Dual-chamber mid-tower |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX (under 280 mm width) |
| Max GPU length | 278-408 mm |
| Max CPU cooler height | ~164 mm |
| Max PSU length | 220 mm |
| Expansion slots | 7 |
| Radiator support | Up to 360 mm at top, side, and bottom |
| Storage | 2x 2.5″/3.5″ cage, 2x 2.5″ bracket |
| Dimensions (H x L x W) | 446.4 x 447.5 x 287.5 mm |
The Lian Li O11 Vision Compact is a dual-chamber mid-tower case with a built-in GPU anti-sag bracket that holds graphics cards ranging from 278 mm to 408 mm in length, a range that covers the RTX 5090 Founders Edition and most board-partner cards. The case separates the motherboard and GPU into a main chamber and routes the power supply and cabling into a secondary chamber behind the motherboard tray.
Motherboard support includes ATX, Micro-ATX, and Mini-ITX, with E-ATX boards up to 280 mm in width also fitting the tray. The case supports back-connect motherboards, including ASUS BTF and MSI Project Zero designs, through dedicated cutouts in the motherboard tray. CPU cooler height clearance reaches approximately 164 mm, lower than the clearance offered by the Fractal Design Torrent, Lancool 216, and AIR 903 MAX, since the O11 Vision Compact prioritizes a compact footprint over maximum air-cooler height.
Seven expansion slots and the anti-sag bracket support both horizontal and vertical GPU orientations, with the bracket height adjustable from behind the motherboard tray. Radiator mounting spans the top, side, and bottom of the case, each accepting up to a 360 mm radiator. Compared with the HYTE Y70, the O11 Vision Compact offers a smaller footprint and lower GPU length clearance, while the Y70 extends further at 422 mm.

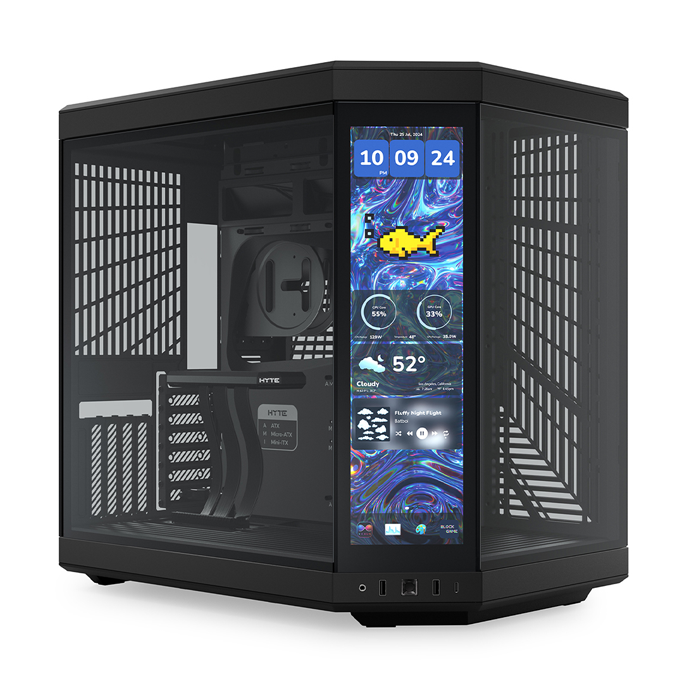

HYTE Y70 / Y70 Touch
CHECK PRICE
PROS
CONS
The following table summarizes the HYTE Y70 / Y70 Touch specifications.
| Specification | Detail |
|---|---|
| Case type | Dual-chamber mid-tower |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX |
| Max GPU length | 422 mm (105 mm width) |
| Max CPU cooler height | 180 mm |
| Expansion slots | 7 horizontal, 4 vertical |
| Radiator support | 360 mm side (125 mm thick), 360 mm top (68 mm thick) |
| Storage | 4x 2.5″, 2x 3.5″ |
| Dimensions (W x D x H) | 470 x 320 x 470 mm |
| Y70 Touch display | 14.1″ capacitive touchscreen, 1100 x 3840 resolution |
The HYTE Y70 is a dual-chamber ATX mid-tower case built around a four-slot vertical GPU mount, supporting graphics cards up to 422 mm in length and 105 mm in width. This clearance and width allowance cover the RTX 5090 in both horizontal and vertical orientations, and the case ships with a PCIe 4.0 x16 riser cable for vertical GPU installation.
Motherboard support spans ATX, E-ATX, Micro-ATX, and Mini-ITX. The case measures 470 x 320 x 470 mm with a 70.7-liter interior volume, larger than the Lancool 216 and O11 Vision Compact. CPU cooler height clearance reaches 180 mm, and the case supports up to 10 fans across the top, side, bottom, and rear when fully populated. The Y70 Touch variant adds a 14.1-inch capacitive touchscreen to the front bezel, displaying system temperatures and utilization without changing the case’s internal clearances.
Radiator mounting includes a 360 mm side radiator up to 125 mm thick and a 360 mm top radiator up to 68 mm thick, supported by cold-floor intake fans that direct airflow up into the GPU. Compared with the Corsair 7000D Airflow, the Y70 offers a smaller footprint at 70.7 liters against the 7000D Airflow’s approximately 82 liters, while providing 28 mm less GPU length clearance. Compared with the O11 Vision Compact, the Y70 extends GPU length clearance by 14 mm and adds native quad-slot vertical GPU support.

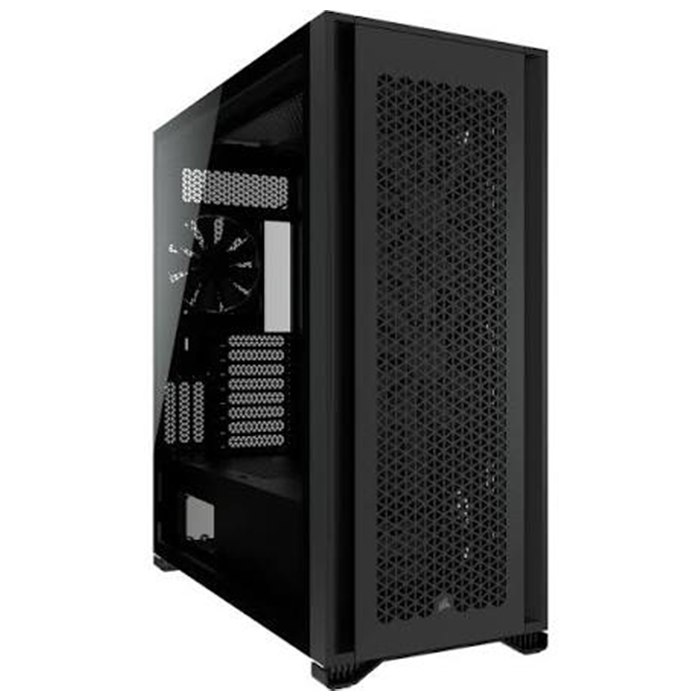

Corsair 7000D Airflow
CHECK PRICE
PROS
CONS
The table below lists the Corsair 7000D Airflow’s specifications.
| Specification | Detail |
|---|---|
| Case type | Full-tower |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX (305 x 277 mm) |
| Max GPU length | 450 mm |
| Max CPU cooler height | 190 mm |
| Max PSU length | 225 mm |
| Expansion slots | 8 horizontal, 3 vertical |
| Included fans | 3x 140 mm AirGuide front |
| Radiator support | 480 mm front, 420 mm top, up to three 360 mm radiators |
| Storage | 6x 3.5″, 4x 2.5″ |
| Dimensions (L x W x H) | 550 x 248 x 600 mm |
The Corsair 7000D Airflow is a full-tower ATX case supporting GPUs up to 450 mm in length, the longest clearance among the six cases in this list. This clearance accommodates the RTX 5090 Founders Edition and the longest board-partner variants without requiring drive-cage removal.
The case supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305 mm by 277 mm. CPU cooler height clearance reaches 190 mm, and the PSU chamber accepts units up to 225 mm in length. Eight horizontal expansion slots plus three vertical slots accommodate RTX 5090 cards in either orientation, with a vertical GPU bracket included in the box. Three 140 mm AirGuide fans ship pre-installed at the front, connected through a PWM fan repeater supporting up to six fans from a single motherboard header.
Radiator support extends to a 480 mm front radiator, a 420 mm top radiator, and up to three simultaneous 360 mm radiators across the front, top, and side. Storage capacity spans six 3.5-inch drives and four 2.5-inch drives. Compared with the Fractal Design Torrent, the 7000D Airflow provides 27 mm more GPU clearance and a larger overall interior volume of approximately 82 liters, at a correspondingly larger physical footprint of 550 x 248 x 600 mm. Compared with the HYTE Y70, the 7000D Airflow offers greater GPU length clearance but lacks a native vertical GPU riser cable in the box.
How To Choose PC Case for RTX 5090
Choose a PC case for the RTX 5090 by matching its GPU length and width clearance to the specific card model, then confirming motherboard, radiator, and expansion-slot compatibility around that GPU.
GPU length clearance is the primary constraint. The RTX 5090 Founders Edition measures 304 mm, while board-partner cards commonly extend to 330-360 mm with triple-fan or quad-fan coolers. A case such as the Corsair 7000D Airflow, at 450 mm of clearance, or the HYTE Y70, at 422 mm, leaves margin for the longest board-partner cards, while the Lian Li Lancool 216, at 392 mm, and the Lian Li O11 Vision Compact, at 408 mm, fit shorter models with less margin.
GPU width and slot count matter alongside length. Board-partner RTX 5090 cards commonly occupy three to four PCIe slots and can exceed 60 mm in thickness. The Montech AIR 903 MAX specifies 190 mm of GPU width clearance, and cases with seven or more expansion slots, including the Fractal Design Torrent and the HYTE Y70, accommodate four-slot coolers without obstructing adjacent PCIe devices.
Motherboard form factor determines whether the case can host the layout the build requires. E-ATX motherboards need a case rated for E-ATX at full width; the Corsair 7000D Airflow and Montech AIR 903 MAX support E-ATX boards without a width restriction, while the Lian Li Lancool 216 and Lian Li O11 Vision Compact cap E-ATX support at 280 mm in width.
Cooling capacity should match the RTX 5090’s TDP of up to 575 W combined with the CPU’s own heat output. Cases offering 360 mm or larger radiator support at the front and top, such as the Fractal Design Torrent and Corsair 7000D Airflow, provide headroom for liquid cooling both components. Air-cooled builds benefit from cases with multiple large intake fans, such as the Torrent’s 180 mm front fans or the AIR 903 MAX’s three 140 mm intakes.
Vertical GPU mounting is a factor for builders prioritizing aesthetics. The HYTE Y70 includes a PCIe 4.0 riser cable for vertical mounting, while the Fractal Design Torrent, Lian Li Lancool 216, and Corsair 7000D Airflow require a separately purchased riser cable to mount the RTX 5090 vertically.
