The RTX 3070 is a dual- to triple-slot graphics card, with Founders Edition models measuring 242mm in length and board-partner variants extending to roughly 320mm or more. A case built for this GPU must provide enough internal clearance for the card, unrestricted front-to-back airflow, and a power supply shroud that does not crowd the lower chamber. Cases with mesh front panels and dedicated bottom or front intake fans support the card’s 220W typical power draw without creating thermal bottlenecks.
Motherboard compatibility affects how a case handles an RTX 3070 build. ATX and Micro-ATX boards remain the most common choice for this GPU tier, and most cases in this class support both alongside Mini-ITX. Several cases extend support to E-ATX boards within a defined width limit, which matters for builders pairing the RTX 3070 with a higher-end chipset or multiple expansion cards. Case width and depth determine whether the GPU, radiator, and motherboard tray can coexist without cable or airflow conflicts.
Airflow architecture separates one case from another at this price point. High-mesh front panels paired with multiple intake fans reduce GPU temperatures under sustained load, while cases with a solid front panel rely more heavily on top and rear exhaust. Radiator support, particularly at the front and top of the chassis, determines whether the case accommodates an all-in-one liquid cooler alongside the graphics card without length conflicts.
The following sections review six cases suited to an RTX 3070 build: the Lian Li Lancool 216, Fractal Design Meshify 2 Compact, Corsair 4000D Airflow, Fractal Design Meshify 3, Lian Li Lancool 207, and Phanteks XT Pro. Each entry covers specifications, motherboard compatibility, and how the case compares with the alternatives on this list.
Best PC Case for RTX 3070 Graphics Card
Lian Li Lancool 216
CHECK PRICE
PROS
CONS
| Specification | Lian Li Lancool 216 |
|---|---|
| Case type | ATX mid tower |
| Dimensions (D x W x H) | 480.9 x 235 x 491.7 mm |
| Motherboard support | E-ATX (under 280mm), ATX, Micro-ATX, Mini-ITX |
| Expansion slots | 7 |
| Max GPU length | 392 mm |
| Max CPU cooler height | 180.5 mm |
| Max PSU length | 220 mm |
| Front radiator support | Up to 360 mm |
| Top radiator support | Up to 360 mm |
| Storage | 6 x 2.5″ + 2 x 3.5″ |
| Front I/O | 2x USB 3.0, 1x USB-C, audio combo |
| Material | Steel, 4.0mm tempered glass |
The Lian Li Lancool 216 is an ATX mid-tower case with 392mm of GPU length clearance, which comfortably accommodates every RTX 3070 variant, including the longest triple-fan board-partner cards. The chassis measures 480.9mm (D) x 235mm (W) x 491.7mm (H) and uses an all-mesh front and top panel to maximize intake airflow.
The Lancool 216 supports ATX, Micro-ATX, and Mini-ITX motherboards, plus E-ATX boards under 280mm in width once the internal grommet bar is flipped. A modular motherboard I/O panel allows the board to sit higher for air-cooling builds, which frees space above the PSU shroud for wider fans, or lower for water-cooling builds, which opens a 63mm gap at the top for a radiator and fan combo. This adjustability makes the case equally suited to an air-cooled RTX 3070 build or one paired with a front or top AIO cooler.
Fan support totals up to nine 120mm-equivalent positions: three 120mm or two 140mm or two 160mm at the front, three 120mm or two 140mm on top, two 120mm or two 140mm on the PSU cover, one 120mm or 140mm at the rear, and one 120mm on the PCIe bracket. Radiator support reaches 360mm at the front and top, with 240mm support at the bottom. Storage capacity covers up to six 2.5-inch drives and two 3.5-inch drives.
Compared with the Corsair 4000D Airflow and Fractal Design Meshify 3, the Lancool 216 offers greater GPU length clearance and a larger native fan count, making it the stronger choice for builders prioritizing maximum airflow over a compact footprint. Against the Lian Li Lancool 207, the Lancool 216 trades a smaller chassis volume for wider motherboard support and taller CPU cooler clearance.

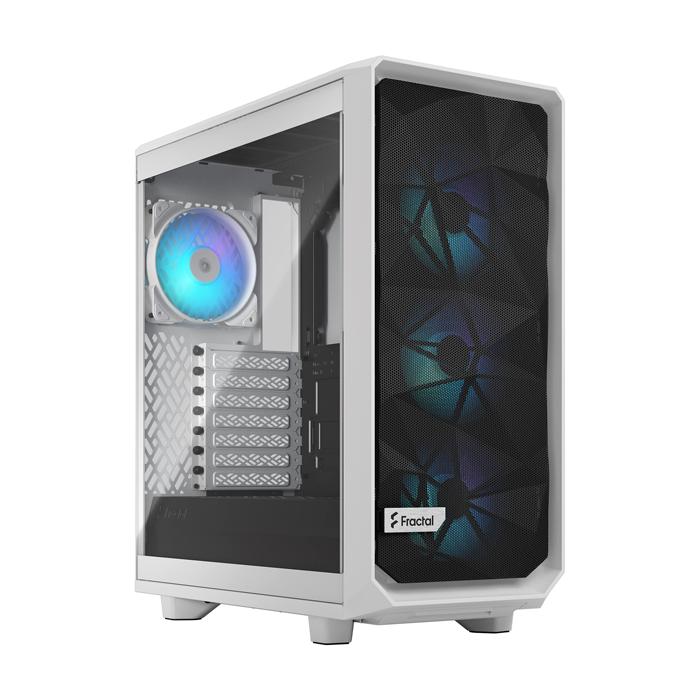

Fractal Design Meshify 2 Compact
CHECK PRICE
PROS
CONS
| Specification | Fractal Design Meshify 2 Compact |
|---|---|
| Case type | ATX mid tower |
| Dimensions (D x W x H) | 424 x 210 x 475 mm |
| Motherboard support | ATX, Micro-ATX, Mini-ITX |
| Expansion slots | 7 |
| Max GPU length | 341 mm (360 mm without front fan) |
| Max CPU cooler height | 169 mm |
| Max PSU length | 200 mm |
| Front radiator support | Up to 360/280 mm |
| Top radiator support | Up to 240 mm |
| Storage | 2 universal 3.5″/2.5″ + up to 4 x 2.5″ |
| Front I/O | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, audio combo |
| Material | Steel, tempered glass |
The Fractal Design Meshify 2 Compact is an ATX mid-tower case with 341mm of GPU length clearance, extending to 360mm when the front fan is removed. Both figures accommodate the RTX 3070 Founders Edition and the majority of board-partner cards. The chassis measures 424mm (D) x 210mm (W) x 475mm (H), making it narrower and shallower than the Lian Li Lancool 216.
The case supports ATX, Micro-ATX, and Mini-ITX motherboards; it does not support E-ATX. This narrower motherboard scope suits an RTX 3070 build centered on a standard ATX or Micro-ATX board rather than a high-end E-ATX platform. The open interior layout keeps a direct airflow path from the mesh front panel to the rear exhaust, which benefits GPU temperatures during sustained load.
Fan support covers three 120mm or two 140mm positions at the front, two 120/140mm on top, one 120mm at the rear, and one 120mm at the bottom, which requires removing the HDD cage. Three Dynamic X2 fans come preinstalled: two 140mm at the front and one 120mm at the rear. Radiator support reaches 360mm or 280mm at the front and 240mm on top. Storage includes two universal 3.5″/2.5″ bays and up to four dedicated 2.5-inch mounts.
Compared with the Corsair 4000D Airflow, the Meshify 2 Compact offers a narrower footprint and similar GPU clearance but lacks E-ATX support. Against the Fractal Design Meshify 3, its own successor, the Meshify 2 Compact provides less GPU length clearance and a smaller total fan mount count, positioning it as the more space-efficient option of the two Fractal Design cases on this list.

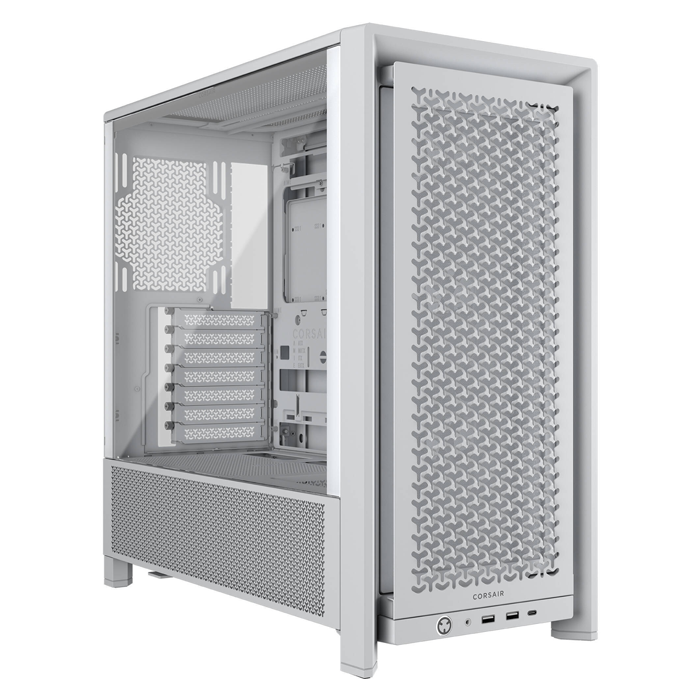

Corsair 4000D Airflow
CHECK PRICE
PROS
CONS
| Specification | Corsair 4000D Airflow |
|---|---|
| Case type | ATX mid tower |
| Dimensions (D x W x H) | 453 x 230 x 466 mm |
| Motherboard support | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Expansion slots | 7 + 2 vertical |
| Max GPU length | 360 mm |
| Max CPU cooler height | 170 mm |
| Max PSU length | 180 mm (220 mm with HDD cage removed) |
| Front radiator support | 120/140/240/280/360 mm |
| Top radiator support | Up to 280 mm |
| Storage | 2 x 3.5″ + 2 x 2.5″ |
| Front I/O | 1x USB 3.1 Type-C, 1x USB 3.1 Type-A, audio combo |
| Material | Steel, tempered glass, plastic |
The Corsair 4000D Airflow is an ATX mid-tower case with 360mm of GPU length clearance, sufficient for the RTX 3070 Founders Edition and most board-partner cards up to and around 320mm. The chassis measures 453mm (D) x 230mm (W) x 466mm (H) and uses a high-airflow mesh front panel designed to maximize intake for high-draw components such as the RTX 3070.
Motherboard support spans E-ATX, ATX, Micro-ATX, and Mini-ITX, giving the 4000D Airflow broader board compatibility than the Fractal Design Meshify 2 Compact while occupying a similar physical footprint. The case includes CORSAIR RapidRoute cable management, which routes major cables through a single channel with 25mm of space behind the motherboard tray.
Fan support totals three 120mm or two 140mm at the front, two 120/140mm on top, and one 120mm at the rear. Two 120mm AirGuide fans come preinstalled at the front and rear. Radiator support covers 120mm, 140mm, 240mm, 280mm, and 360mm configurations at the front, with up to 280mm on top and 120mm at the rear. Storage capacity covers two 3.5-inch and two 2.5-inch drives, and maximum PSU length reaches 180mm, extending to 220mm with the HDD cage removed.
Compared with the Lian Li Lancool 216, the 4000D Airflow offers less GPU length clearance but includes E-ATX support in a more compact chassis. Against the Fractal Design Meshify 3, the 4000D Airflow provides similar GPU clearance at a typically lower price point, though it supports fewer total fan positions.

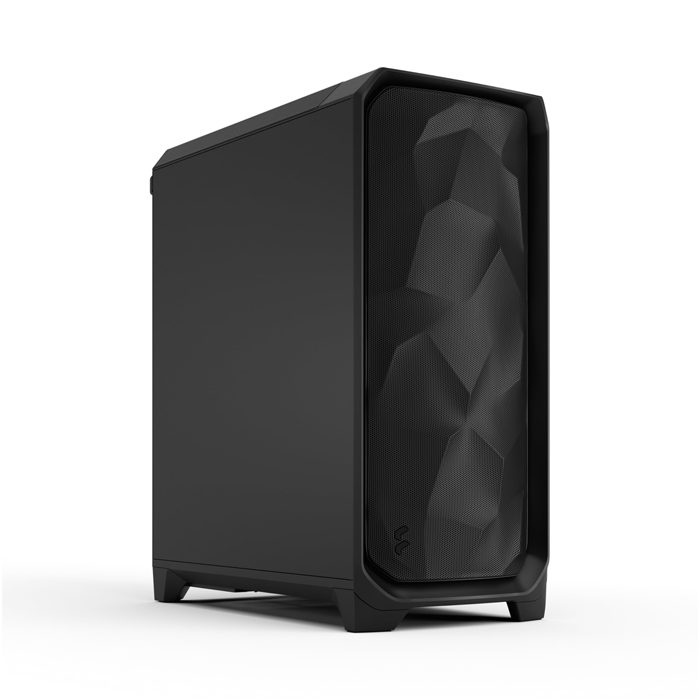

Fractal Design Meshify 3
CHECK PRICE
PROS
CONS
| Specification | Fractal Design Meshify 3 |
|---|---|
| Case type | ATX mid tower |
| Dimensions (L x W x H) | 433 x 229 x 507 mm |
| Motherboard support | E-ATX (up to 277 mm), ATX, Micro-ATX, Mini-ITX |
| Expansion slots | 7 |
| Max GPU length | 349 mm |
| Max CPU cooler height | 173 mm |
| Max PSU length | 180 mm |
| Front radiator support | Up to 360/280 mm |
| Top radiator support | Up to 280/240 mm |
| Storage | 2 x 3.5″ + 4 x 2.5″ (+2 x 2.5″ under PSU cover) |
| Front I/O | USB-C Gen 2 (20 Gbps), 2x USB-A, audio combo |
| Material | Steel, tempered glass |
The Fractal Design Meshify 3 is an ATX mid-tower case with 349mm of GPU length clearance, covering the RTX 3070 Founders Edition and the large majority of board-partner variants. The chassis measures 433mm (L) x 229mm (W) x 507mm (H), making it taller than the Meshify 2 Compact while retaining a similar width. A rock-face mesh front panel paired with an internal air guide directs intake airflow toward the GPU.
Motherboard support extends to E-ATX boards up to 277mm wide, alongside ATX, Micro-ATX, and Mini-ITX, giving the Meshify 3 broader compatibility than its Meshify 2 Compact predecessor. This wider support matters for RTX 3070 builds paired with a larger E-ATX motherboard that the Meshify 2 Compact cannot accommodate.
Fan support totals six 120mm or five 140mm plus one 120mm positions: three 120/140mm at the front, two 120/140mm on top, and one 120mm at the rear. Three 140mm Momentum fans with liquid crystal polymer blades come preinstalled. Radiator support reaches 360mm or 280mm at the front and 280mm or 240mm on top. Storage covers two 3.5-inch and four 2.5-inch bays, plus two additional 2.5-inch mounts under the PSU cover, for six total drive positions.
Compared with the Corsair 4000D Airflow, the Meshify 3 offers E-ATX support and a dedicated GPU air guide but occupies a taller chassis. Against the Lian Li Lancool 216, the Meshify 3 provides slightly less GPU length clearance and a smaller front radiator ceiling, positioning it as a comparable but more compact E-ATX-capable option.
Lian Li Lancool 207
CHECK PRICE
PROS
CONS
| Specification | Lian Li Lancool 207 |
|---|---|
| Case type | ATX-compatible compact tower |
| Dimensions (D x W x H) | 455.6 x 219 x 456 mm |
| Motherboard support | ATX (under 240mm width), Micro-ATX, Mini-ITX |
| Expansion slots | 7 |
| Max GPU length | 410 mm |
| Max CPU cooler height | 167 mm |
| Max PSU length | Under 160 mm |
| Top radiator support | 360/280/240 mm |
| Storage | 2 x 3.5″ HDD or 2.5″ SSD |
| Front I/O | 2x USB 3.0, 1x USB 3.1 Type-C, audio combo |
| Material | Steel, 4.0mm tempered glass, aluminum |
The Lian Li Lancool 207 is a compact ATX-compatible case with 410mm of GPU length clearance, exceeding every case on this list and comfortably fitting any RTX 3070 board-partner design regardless of length. The chassis measures 455.6mm (D) x 219mm (W) x 456mm (H) within a 45.5-liter volume, achieved through a redesigned, offset motherboard tray and a front-mounted PSU.
Motherboard support covers standard ATX boards up to 240mm in width, plus Micro-ATX and Mini-ITX; the Lancool 207 does not support E-ATX. The offset motherboard tray creates additional clearance above the board for thick fans and a full-size top radiator, while the front-mounted PSU frees space in the lower chamber and positions bottom-mounted fans directly beneath the GPU for targeted cooling.
Fan support includes two 140mm positions at the front (preinstalled), three 120mm or two 140mm on top, two 120mm above the PSU shroud (preinstalled), and one 120mm at the rear. Four fans ship preinstalled in total: two 140mm ARGB units at the front and two 120mm PWM units above the PSU shroud. Radiator support at the top reaches 360mm, 280mm, or 240mm. Storage is limited to two 3.5-inch or 2.5-inch drives, and the case includes a pre-installed, adjustable GPU anti-sag bracket.
Compared with the Lian Li Lancool 216, the Lancool 207 achieves greater GPU length clearance in a smaller chassis footprint but drops E-ATX support and offers less storage capacity. Against the Phanteks XT Pro, the Lancool 207 provides a more compact build volume, while the XT Pro extends GPU clearance further and supports E-ATX boards.

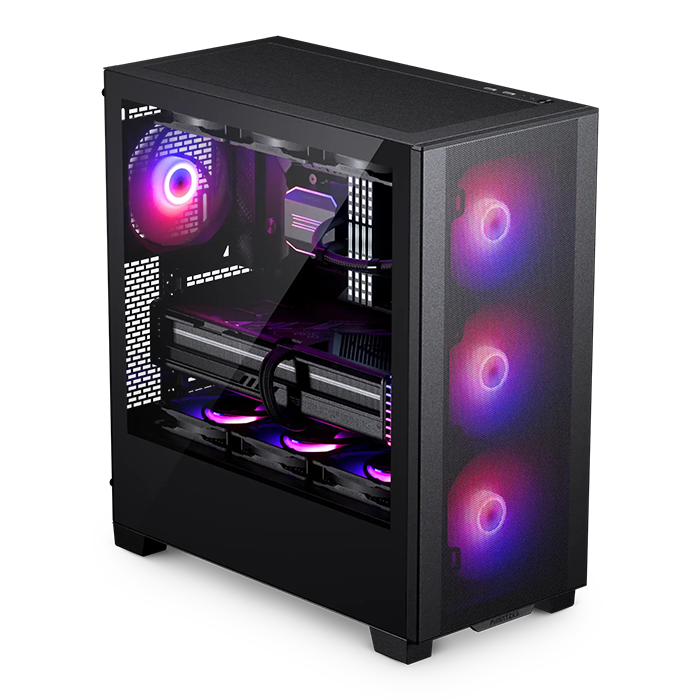

Phanteks XT Pro
CHECK PRICE
PROS
CONS
| Specification | Phanteks XT Pro |
|---|---|
| Case type | ATX mid tower |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX (up to 280mm) |
| Expansion slots | 7 |
| Max GPU length | 415 mm |
| Max GPU width | 184 mm |
| Max CPU cooler height | 184 mm |
| Top radiator support | Dedicated 360 mm |
| Storage | 2 x 3.5″ (bottom cage) + up to 3 x 2.5″ (rear bracket) |
| Front I/O | USB-C, USB-A, HD audio |
| Material | Steel, tempered glass |
The Phanteks XT Pro is an ATX mid-tower case with 415mm of GPU length clearance and 184mm of GPU width clearance, the largest GPU clearance figures on this list and more than sufficient for any RTX 3070 variant. The case supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 280mm wide, matching the motherboard scope of the Lian Li Lancool 216.
The XT Pro is built to support hidden-connector motherboards, including MSI Project Zero and ASUS BTF designs, routing rear-side cable connectors through dedicated passthroughs for a cleaner build. This compatibility extends the case’s usefulness beyond a standard RTX 3070 build to newer cable-management-focused motherboard platforms.
Fan support reaches up to ten 120mm positions or six 140mm plus three 120mm positions, including three dedicated 120mm midplate positions aimed directly at the GPU for targeted cooling. One 120mm rear fan ships preinstalled on the base model; RGB variants such as the XT Pro Ultra include four 140mm DRGB fans. The case provides dedicated top radiator support up to 360mm and can house up to three radiators simultaneously. Storage covers two 3.5-inch drives in the bottom cage plus up to three 2.5-inch drives on a removable rear bracket.
Compared with the Lian Li Lancool 207, the XT Pro offers greater GPU length clearance and adds E-ATX support, at the cost of a larger overall chassis footprint. Against the Lian Li Lancool 216, the XT Pro extends GPU clearance further and supports up to ten fan positions, while the Lancool 216 ships with more fans preinstalled on its base configuration.
How To Choose PC Case for RTX 3070
Choose a PC case for the RTX 3070 by matching three requirements: GPU length clearance above 320mm, a motherboard support list that includes the target board size, and front or top radiator support if liquid cooling is planned. These three factors determine whether the case physically fits the graphics card and cooling setup without compromise.
GPU length clearance is the primary constraint, since RTX 3070 board-partner cards range from the 242mm Founders Edition up to roughly 320mm on triple-fan designs. A case rated below 320mm risks incompatibility with longer AIB cards, while every case reviewed above clears this threshold with margin. Motherboard support must match the intended board: ATX and Micro-ATX boards fit all six cases on this list, while E-ATX support is limited to the Lian Li Lancool 216, Corsair 4000D Airflow, Fractal Design Meshify 3, and Phanteks XT Pro.
Airflow architecture affects sustained GPU temperatures under load. A mesh front panel with two or more intake fans, such as those on the Lian Li Lancool 216, Corsair 4000D Airflow, and Phanteks XT Pro, reduces thermal buildup during extended gaming or rendering sessions compared with a solid front panel. Radiator support matters only if the build includes an all-in-one liquid cooler; front and top radiator clearance up to 360mm, available on the Lancool 216, Meshify 2 Compact, Meshify 3, and Lancool 207, covers the majority of consumer AIO sizes.
Case volume and desk footprint act as the final filter once GPU, motherboard, and cooling requirements are met. Compact options such as the Lian Li Lancool 207 fit smaller desks while still clearing 410mm of GPU length, whereas larger chassis such as the Fractal Design Meshify 3 and Phanteks XT Pro trade footprint for additional fan positions and E-ATX support.
