The NVIDIA GeForce RTX 5070 is a dual-slot, Blackwell-architecture graphics card measuring approximately 242 to 245 mm in length in its Founders Edition form, with a recommended power supply of 650 W. Third-party partner versions of the card extend this length to roughly 300 to 340 mm depending on the cooler design, so case selection depends on GPU clearance, airflow, and motherboard compatibility rather than raw case size alone.
A PC case built for the RTX 5070 must provide enough front-to-back clearance for the graphics card, sufficient intake airflow to support the card’s 250 W thermal design power, and a motherboard tray that matches the builder’s chosen board size. Most modern mid-tower cases exceed the RTX 5070’s length requirement, which shifts the buying decision toward secondary factors: fan and radiator support, cable management space, front I/O connectivity, and price.
This guide reviews six mid-tower cases that support the RTX 5070 across ATX, Micro-ATX, Mini-ITX, and, in some models, E-ATX motherboards. Each case is evaluated on its specifications, motherboard compatibility, airflow design, and price, with a dedicated comparison against the other cases in this list. The final section explains how to weigh these factors when selecting a case for an RTX 5070 build.
Best PC Casings for RTX 5070 Graphics Card

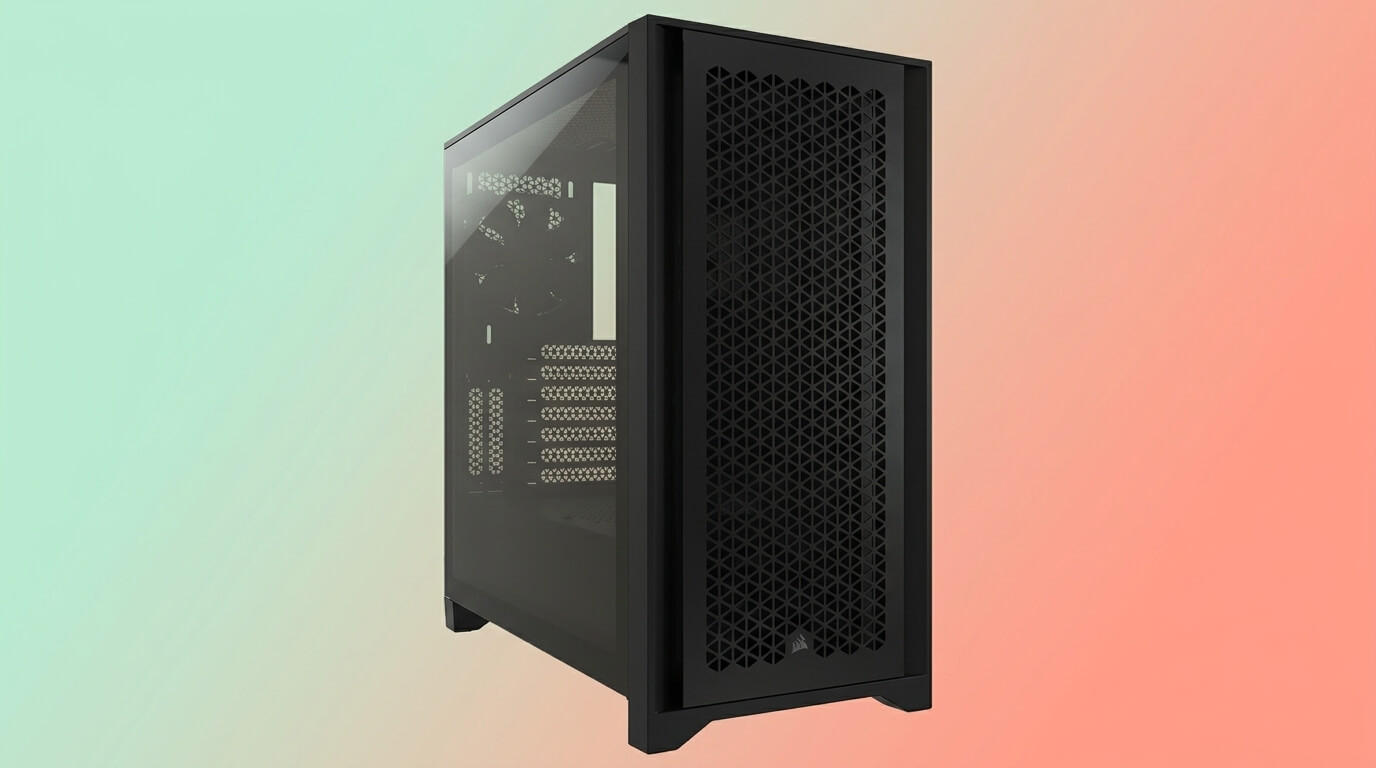

Corsair 4000D Airflow
CHECK PRICE
PROS
CONS
| Specification | Value |
|---|---|
| Case type | ATX mid-tower |
| Dimensions (L x W x H) | 453 x 230 x 466 mm |
| Weight | 7.8 kg |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX |
| Max GPU length | 360 mm |
| Max CPU cooler height | 170 mm |
| Max PSU length | 220 mm |
| Radiator support | 360 mm front, 280 mm top, 120 mm rear |
| Included fans | 2 x 120 mm AirGuide |
| Total fan capacity | 6 x 120 mm or 4 x 140 mm |
| Front I/O | USB 3.1 Type-C, USB 3.0, audio jack |
| Typical price | $95 to $105 |
The Corsair 4000D Airflow is a steel and tempered-glass mid-tower case built around a perforated front panel that prioritizes intake airflow. The case measures 453 mm x 230 mm x 466 mm and weighs 7.8 kg empty. Two pre-installed 120 mm AirGuide fans handle intake, and the chassis supports up to six 120 mm or four 140 mm fans in total.
GPU clearance reaches 360 mm, which accommodates the RTX 5070 Founders Edition and the large majority of partner cards. CPU cooler height clearance is 170 mm, and PSU length support extends to 220 mm. The case includes 25 mm of cable routing space behind the motherboard tray through Corsair’s RapidRoute channel system. Radiator support covers up to 360 mm in the front, 280 mm in the top (reduced with tall RAM), and 120 mm in the rear.
The 4000D Airflow supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards, with seven horizontal expansion slots and two vertical slots for riser-mounted GPU installations. Front I/O includes one USB 3.1 Type-C port, one USB 3.0 port, and a combination audio jack.
Compared with the Lian Li Lancool 216 and the Montech AIR 903 MAX, the 4000D Airflow has less GPU clearance (360 mm versus 392 mm and 400 mm) and includes fewer fans out of the box. Against the Phanteks XT Pro Ultra, the 4000D Airflow costs slightly more at typical retail pricing but offers a more established cable-management system. It remains a reasonable choice for builders who prioritize cable routing and a compact footprint over maximum fan count.
Lian Li Lancool 216
CHECK PRICE
PROS
CONS
| Specification | Value |
|---|---|
| Case type | ATX mid-tower |
| Dimensions (D x W x H) | 480.9 x 235 x 491.7 mm |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX (under 280 mm) |
| Max GPU length | 392 mm |
| Max CPU cooler height | 180.5 mm |
| Max PSU length | 220 mm |
| Radiator support | 360 mm front/top, 240 mm bottom |
| Included fans | 2 x 160 mm front, 1 x 140 mm rear |
| Total fan capacity | Up to 10 x 120 mm equivalent |
| Front I/O | 2 x USB 3.0, 1 x USB Type-C, audio |
| Typical price | $100 to $110 |
The Lian Li Lancool 216 is a mid-tower case that uses dual 160 mm front intake fans as its primary airflow feature, paired with a 140 mm rear exhaust fan. The chassis measures 480.9 mm x 235 mm x 491.7 mm and is constructed from steel with a 4.0 mm tempered-glass side panel.
GPU length clearance reaches 392 mm, and CPU cooler height clearance reaches 180.5 mm, both of which exceed the requirements of an RTX 5070 build by a wide margin. PSU support covers units up to 220 mm in length. Radiator mounting supports up to 360 mm in the front and top and 240 mm on the bottom, giving builders flexibility for liquid cooling. Storage capacity includes two 2.5-inch and two 3.5-inch drives in the front cage, plus two additional 2.5-inch drives behind the motherboard tray.
Motherboard support spans Mini-ITX, Micro-ATX, and ATX as standard, with E-ATX boards up to 280 mm (11.02 inches) wide fitting when the grommet bar is reversed. Seven expansion slots accommodate horizontal GPU installation, and a PCIe fan bracket adds a dedicated mounting point for direct GPU cooling.
Against the Corsair 4000D Airflow, the Lancool 216 offers greater GPU clearance and more included fans at a comparable price point. Compared with the Montech AIR 903 MAX, the Lancool 216 has slightly less GPU clearance (392 mm versus 400 mm) but includes larger front fans by default. The RGB variant requires an additional $15 controller to enable lighting adjustment without a compatible motherboard header.

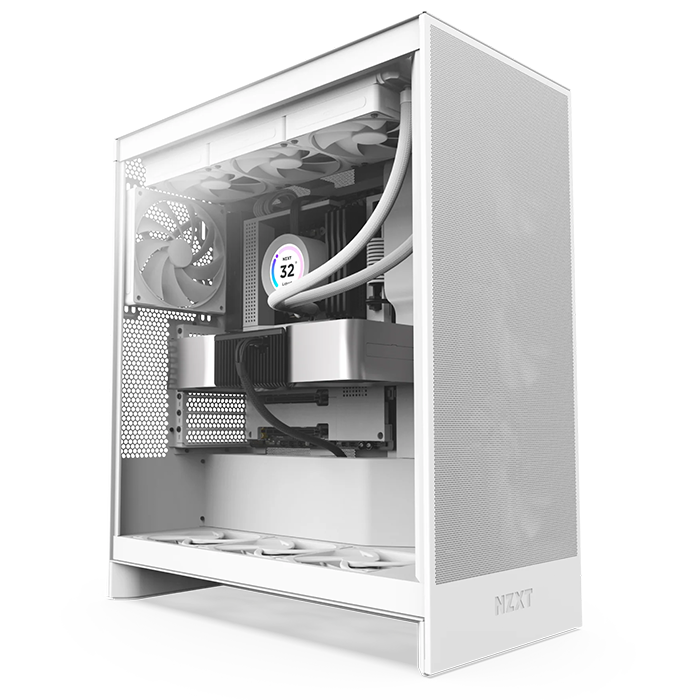

NZXT H7 Flow
CHECK PRICE
PROS
CONS
| Specification | Value |
|---|---|
| Case type | ATX mid-tower |
| Dimensions (D x W x H) | 468 x 244 x 544 mm |
| Weight | 11.13 kg |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX (up to 277 mm) |
| Max GPU length | 410 mm |
| Max CPU cooler height | 185 mm |
| Max PSU length | 200 mm |
| Radiator support | 420 mm front, 360 mm top, 140 mm rear |
| Included fans | 2 x 120 mm F120Q |
| Total fan capacity | 10 |
| Front I/O | 2 x USB 3.2 Type-A, USB 3.2 Gen 2×2 Type-C, audio |
| Typical price | $100 to $130 |
The NZXT H7 Flow is a mid-tower case built for high-airflow builds, using a perforated front and top panel alongside a vertical PSU mount that frees space for bottom-mounted fans. The current (2024) revision measures 468 mm deep, 244 mm wide, and 544 mm tall, and weighs 11.13 kg.
GPU length clearance reaches 410 mm, among the highest in this comparison, while CPU cooler height clearance reaches 185 mm. PSU support covers ATX units up to 200 mm. Radiator support is generous: up to 420 mm in the front, 360 mm on top, and 140 mm at the rear. Total fan capacity reaches ten positions across the front, top, bottom, and rear panels, though only two 120 mm F120Q fans ship as standard on the base model.
Motherboard support includes Mini-ITX, Micro-ATX, ATX, and E-ATX boards up to 277 mm wide. Front I/O provides two USB 3.2 Type-A ports, one USB 3.2 Gen 2×2 Type-C port, and a combination audio jack. The case supports NZXT’s vertical GPU mounting kit as a separate purchase.
Against the Lian Li Lancool 216, the H7 Flow offers greater GPU clearance (410 mm versus 392 mm) but ships with fewer fans, which raises the effective cost of a balanced airflow configuration. Compared with the Fractal Design North, the H7 Flow provides substantially more front and top radiator headroom. The H7 Flow RGB variant, which includes three RGB fans, narrows this fan-count gap at a higher price.
Montech AIR 903 MAX
CHECK PRICE
PROS
CONS
| Specification | Value |
|---|---|
| Case type | E-ATX mid-tower |
| Dimensions (L x W x H) | 478 x 230 x 493 mm |
| Volume | 54 L |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-EEB |
| Max GPU length | 400 mm |
| Max GPU width | 190 mm |
| Max CPU cooler height | 180 mm |
| Radiator support | 360 mm front and top |
| Included fans | 3 x 140 mm ARGB, 1 x 140 mm PWM |
| Storage capacity | 5 x 2.5-inch, 2 x 3.5-inch |
| Front I/O | USB 3.2 Type-A, USB 3.2 Type-C |
| Typical price | $75 to $90 |
The Montech AIR 903 MAX is an E-ATX mid-tower case that pairs a metal front panel with a stated 51 percent ventilation rate with four pre-installed 140 mm fans. The chassis measures 478 mm x 230 mm x 493 mm, giving it an internal volume of approximately 54 liters.
GPU clearance reaches 400 mm in length and 190 mm in width, figures that comfortably exceed the RTX 5070’s dimensions and accommodate most current triple-fan graphics cards. CPU tower cooler clearance extends to 180 mm. Radiator support covers up to 360 mm in both the front and top positions. Storage capacity spans five 2.5-inch drives and two 3.5-inch drives across three mounting areas: two 2.5-inch bays beside the motherboard, two 2.5-inch bays behind the motherboard tray, and a combined bay near the case floor.
The case supports E-ATX and SSI-EEB motherboards in addition to standard ATX, Micro-ATX, and Mini-ITX boards. Included cooling consists of three ARGB 140 mm intake fans and one non-RGB 140 mm rear exhaust fan, connected through a built-in ARGB and PWM hub. Cable routing space behind the motherboard tray measures 27 mm.
Against the Corsair 4000D Airflow, the AIR 903 MAX offers greater GPU clearance and E-ATX support at a lower typical price. Compared with the Phanteks XT Pro Ultra, the AIR 903 MAX includes more pre-installed fans, though the Phanteks case supports newer rear-connector motherboard standards that the Montech case does not address.
Phanteks XT Pro Ultra
CHECK PRICE
PROS
CONS
| Specification | Value |
|---|---|
| Case type | ATX mid-tower |
| Dimensions (H x W x D) | 500 x 230 x 450 mm |
| Volume | 52 L |
| Motherboard support | Mini-ITX, Micro-ATX, ATX, E-ATX (up to 280 mm) |
| Max GPU length | 415 mm |
| Max GPU width | 184 mm |
| Max CPU cooler height | 184 mm |
| Radiator support | 360 mm top |
| Included fans | 4 x 140 mm D-RGB |
| Total fan capacity | 10 x 120 mm or 6 x 140 mm + 3 x 120 mm |
| Front I/O | USB-C 3.2 Gen 2, USB 3.0, audio |
| Typical price | $70 to $80 |
The Phanteks XT Pro Ultra is a mid-tower case designed around compatibility with rear-connector motherboards from MSI, ASUS, and Gigabyte, alongside four pre-installed 140 mm D-RGB fans. The case measures 450 mm x 230 mm x 500 mm, for an internal volume of approximately 52 liters.
GPU clearance reaches 415 mm in length and 184 mm in width, figures that exceed the requirements of the RTX 5070 and most partner-card variants. CPU cooler height clearance reaches 184 mm. The case supports a dedicated 360 mm radiator position in the top panel and offers three 120 mm fan positions on the mid-plate for direct GPU cooling. Total fan capacity reaches ten 120 mm fans or a combination of six 140 mm and three 120 mm fans.
Motherboard support covers Mini-ITX, Micro-ATX, ATX, and E-ATX boards up to 280 mm wide, including rear-connector designs such as MSI Project Zero, ASUS BTF, and Gigabyte Project Stealth boards, which route cables through the back of the motherboard rather than the front edge. Front I/O includes a USB-C 3.2 Gen 2 port, a USB 3.0 port, and a combination audio jack.
Compared with the NZXT H7 Flow, the XT Pro Ultra offers similar GPU clearance (415 mm versus 410 mm) at a substantially lower typical price. Against the Montech AIR 903 MAX, the XT Pro Ultra provides rear-connector motherboard support that the Montech case lacks, though independent testing has noted that Phanteks has not published official CPU and GPU clearance figures verified through internal measurement rather than manufacturer specification alone.
Fractal Design North
CHECK PRICE
PROS
CONS
| Specification | Value |
|---|---|
| Case type | ATX mid-tower |
| Dimensions (L x W x H, with feet) | 447 x 215 x 469 mm |
| Weight | 7.6 kg (mesh) / 7.7 kg (tempered glass) |
| Motherboard support | Mini-ITX, Micro-ATX, ATX |
| Max GPU length | 355 mm (300 mm with 360 mm front radiator) |
| Max CPU cooler height | 170 mm (145 mm with side fan bracket) |
| Max PSU length | 255 mm (1 HDD tray) / 155 mm (2 HDD trays) |
| Radiator support | 360 mm front, 240 mm top, 120 mm rear |
| Included fans | 2 x 140 mm Aspect PWM |
| Total fan capacity | 6 x 120 mm or 4 x 140 mm |
| Front I/O | USB-C, 2 x USB 3.0, audio |
| Typical price | $115 to $170, depending on finish |
The Fractal Design North is a mid-tower case distinguished by a wood-veneer front panel available in oak or walnut, backed by a mesh intake path. The case measures 447 mm x 215 mm x 469 mm with feet, or 433.5 mm x 215 mm x 450 mm without, and ships with two 140 mm Aspect PWM fans pre-installed.
GPU length clearance reaches 355 mm with or without a front fan installed, dropping to 300 mm if a 360 mm front radiator is mounted instead. This clearance accommodates the RTX 5070 Founders Edition and the majority of partner cards, though builders using the longest triple-fan variants alongside a front radiator should verify clearance against the specific card’s length. CPU cooler height clearance reaches 170 mm without the optional side fan bracket, or 145 mm with it installed. PSU support extends to 255 mm with a single HDD tray or 155 mm with two trays fitted.
Motherboard support covers Mini-ITX, Micro-ATX, and ATX, without E-ATX compatibility. Radiator mounting reaches 360 mm in the front, 240 mm on top, and a single 120 mm position at the rear. Storage capacity includes two 2.5-inch/3.5-inch combination bays and two dedicated 2.5-inch mounts.
Against the Fractal Design North and its competitors here, the North offers the smallest GPU clearance of the six cases and the only one without E-ATX support, positioning it for builders prioritizing aesthetics over maximum hardware headroom. Compared with the Corsair 4000D Airflow, the North has a smaller footprint but less front radiator flexibility once a large radiator reduces GPU length.
How To Choose PC Case for RTX 5070
The right PC case for an RTX 5070 build provides at least 250 mm of GPU length clearance, matches the builder’s chosen motherboard size, and supplies enough intake airflow to support the card’s 250 W thermal design power. Because the RTX 5070 Founders Edition measures only 242 to 245 mm in length, every case reviewed in this guide clears the requirement with substantial margin; the deciding factors become motherboard support, radiator flexibility, and budget.
Motherboard size determines the minimum viable case. Builders using a standard ATX or Micro-ATX board can select any of the six cases covered here, while those using an E-ATX or SSI-EEB board should choose the Lian Li Lancool 216, the Montech AIR 903 MAX, the Corsair 4000D Airflow, or the Phanteks XT Pro Ultra, since the Fractal Design North and the standard NZXT H7 Flow configuration do not support boards beyond ATX width in the North’s case or 277 mm in the H7 Flow’s case.
Airflow requirements scale with the rest of the system rather than the GPU alone. A case with strong front intake, such as the NZXT H7 Flow or the Lian Li Lancool 216, benefits builds pairing the RTX 5070 with a high-power CPU, since combined component heat output raises case-level cooling demand beyond what the GPU generates on its own. Builders planning a front-mounted radiator should confirm the resulting GPU clearance after the radiator’s thickness is subtracted, since several cases in this comparison reduce their maximum GPU length once a large front radiator occupies part of the same clearance zone.
Budget and included accessories affect the total cost of a finished build. The Phanteks XT Pro Ultra and Montech AIR 903 MAX ship with the highest fan counts at the lowest prices among the cases reviewed, reducing the need for separate fan purchases. Cases such as the Corsair 4000D Airflow and NZXT H7 Flow ship with fewer fans, which raises the effective cost of matching the airflow performance of fan-inclusive alternatives. Builders prioritizing appearance over maximum hardware headroom may accept the Fractal Design North’s reduced GPU and motherboard support in exchange for its distinct wood-panel design.
