The RTX 4090 measures up to 358mm in its reference form and exceeds 340mm in most third-party designs, and it requires a case with sufficient GPU clearance, airflow, and PSU shroud space to operate without thermal throttling. Case selection for this GPU depends on internal length clearance, front and top radiator support, motherboard compatibility, and airflow design, since the RTX 4090’s three-slot cooler and high power draw place greater demands on chassis intake than earlier GPU generations.
This article reviews six cases suited to RTX 4090 builds: Fractal Design Torrent, Lian Li Lancool III, Corsair 7000D Airflow, Corsair 5000D Airflow, Phanteks Eclipse G500A, and Lian Li O11 Dynamic EVO XL. Each case supports GPU lengths at or above 330mm, and each targets a different combination of airflow priority, motherboard size, and internal volume.
The comparisons below use identical criteria across all six cases: maximum GPU clearance, motherboard support, CPU cooler height, radiator compatibility, included fans, and expansion slots. Each review separates advantages from disadvantages and closes with a specification table for direct reference.
Best PC Casing for RTX 4090 Graphics Card
Fractal Design Torrent
CHECK PRICE
PROS
CONS
| Specification | Fractal Design Torrent |
|---|---|
| Case type | Mid-tower |
| Motherboard support | E-ATX, ATX, Micro-ATX, Mini-ITX, SSI-EEB, SSI-CEB |
| Max GPU length | 423mm (with fans) / 461mm (without fans) |
| Max CPU cooler height | 188mm |
| Max PSU length | 230mm |
| Included fans | 2x 180mm (floor), 3x 140mm (front) |
| Radiator support | 360/420mm (floor), 120/140mm (rear) |
| Expansion slots | 7 (bridgeless) |
| Drive bays | 4x 2.5″, 2x 3.5″ |
| Dimensions (H x D x W) | 530 x 544 x 242mm |
The Fractal Design Torrent is a mid-tower case built around two 180mm bottom-mounted intake fans that draw air directly beneath the GPU. The case supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards, along with SSI-EEB and SSI-CEB workstation boards.
The Torrent provides 423mm of GPU clearance with the front fan bracket installed, and 461mm when the bracket is removed. This clearance accommodates the RTX 4090 in both reference and most triple-fan aftermarket configurations. CPU cooler height clearance reaches 188mm, and PSU length clearance reaches 230mm.
Five fans ship pre-installed: two 180mm units on the case floor and three 140mm units at the front. The floor-mounted fans intake air directly beneath the graphics card, which lowers GPU intake temperature compared to front-only intake designs. The case supports 360mm and 420mm radiators on the floor and a 120mm or 140mm radiator at the rear. A SATA-powered fan hub controls all pre-installed fans from a single motherboard header.
Compared with the Corsair 7000D Airflow, the Torrent provides similar GPU clearance but adds E-ATX support and floor-intake cooling that the 7000D Airflow does not offer. Compared with the Lian Li O11 Dynamic EVO XL, the Torrent ships with more pre-installed fans, while the O11 Dynamic EVO XL offers greater raw GPU length clearance.

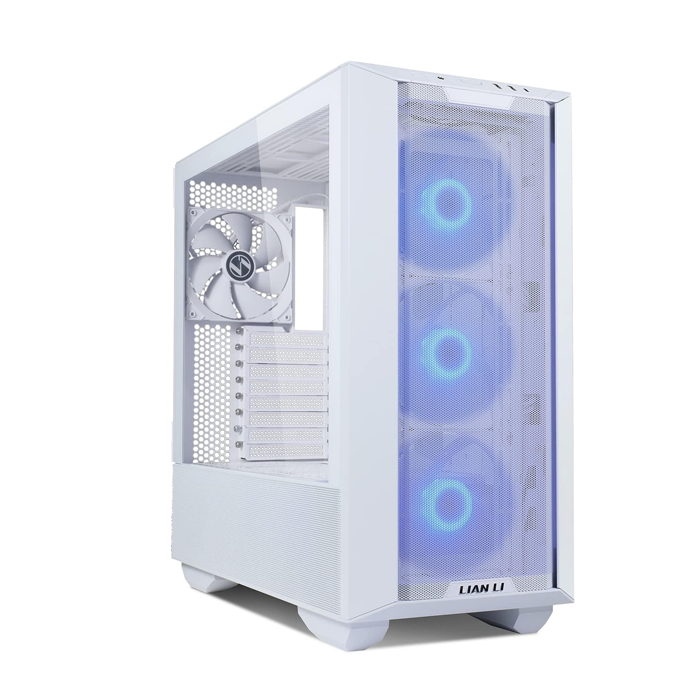

Lian Li Lancool III
CHECK PRICE
PROS
CONS
| Specification | Lian Li Lancool III |
|---|---|
| Case type | Mid-tower |
| Motherboard support | E-ATX (under 280mm), ATX, Micro-ATX, Mini-ITX |
| Max GPU length | 420mm |
| Max CPU cooler height | 185mm |
| Max PSU length | 220mm |
| Included fans | 4x 140mm PWM |
| Radiator support | 360/280mm (front), 420/360mm (top), 360mm (above PSU) |
| Expansion slots | 8 |
| Drive bays | Up to 12 mounting locations (4x 3.5″/2.5″ cage plus SSD trays) |
| Front I/O | USB Type-C, 2x USB 3.0 |
The Lian Li Lancool III is a mid-tower case with a 51% porosity front mesh panel and four pre-installed 140mm PWM fans. The case supports E-ATX motherboards up to 280mm wide, along with ATX, Micro-ATX, and Mini-ITX boards.
GPU length clearance reaches 420mm, which accommodates the RTX 4090 in reference and most third-party card lengths. CPU air cooler height clearance reaches 185mm, and the PSU chamber supports ATX units up to 220mm with a dedicated 220mm clearance zone.
The Lancool III supports radiators in three positions: 360mm or 280mm at the front, 420mm or 360mm at the top, and a 360mm radiator above the PSU shroud, for a combined maximum of three 360mm radiators. Hinged tempered-glass side panels and mesh doors over the PSU shroud provide tool-free access to the drive cages. A GPU anti-sag bracket ships in the box, and an optional O11D EVO vertical GPU kit allows vertical card mounting.
Compared with the Fractal Design Torrent, the Lancool III supports more simultaneous radiator positions but ships with fewer pre-installed fans. Compared with the Phanteks Eclipse G500A, the Lancool III provides marginally less GPU clearance but adds a fourth pre-installed fan.
Corsair 7000D Airflow
CHECK PRICE
PROS
CONS
| Specification | Corsair 7000D Airflow |
|---|---|
| Case type | Full-tower |
| Motherboard support | ATX, Micro-ATX, Mini-ITX |
| Max GPU length | 330mm |
| Max CPU cooler height | 175mm |
| Max PSU length | 225mm |
| Included fans | 3x 140mm AirGuide (front) |
| Radiator support | 480/420mm (front), 420/360mm (top), 480/420mm (motherboard tray side) |
| Expansion slots | 9 |
| Dimensions (W x D x H) | 248 x 550 x 600mm |
| Cable routing space | 25mm behind motherboard tray |
The Corsair 7000D Airflow is a full-tower case measuring 600 x 550 x 248mm, built for high-airflow builds with an unobstructed steel mesh front panel. The case supports ATX, Micro-ATX, and Mini-ITX motherboards; it does not support E-ATX boards.
Official GPU clearance is 330mm, which fits reference-length RTX 4090 cards but restricts some longer triple-fan aftermarket models. CPU cooler height clearance reaches 175mm, and PSU length clearance reaches 225mm.
Three 140mm AirGuide fans ship pre-installed at the front. The case supports radiators up to 480mm at the front, 420mm at the top, and an additional 480mm/420mm zone on the motherboard tray side, allowing up to three simultaneous 360mm radiators. RapidRoute cable management provides 25mm of routing space behind the motherboard tray, concealed by a hinged steel door. A vertical GPU mounting bracket ships in the box, though the riser cable is sold separately.
Compared with the Corsair 5000D Airflow, the 7000D Airflow adds a full-tower chassis and greater radiator capacity but does not extend GPU length clearance beyond the 5000D Airflow’s rating. Compared with the Lian Li O11 Dynamic EVO XL, the 7000D Airflow provides less raw GPU clearance but includes pre-installed fans, which the O11 Dynamic EVO XL does not.
Corsair 5000D Airflow
CHECK PRICE
PROS
CONS
| Specification | Corsair 5000D Airflow |
|---|---|
| Case type | Mid-tower |
| Motherboard support | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Max GPU length | 420mm |
| Max CPU cooler height | 170mm |
| Max PSU length | 225mm |
| Included fans | 2x 120mm AirGuide (front) |
| Radiator support | 360mm (front), 360mm push/pull (top) |
| Expansion slots | 7 horizontal, 2 vertical |
| Drive bays | 2x 3.5″, 4x 2.5″ |
| Cable routing space | 25mm behind motherboard tray |
The Corsair 5000D Airflow is a mid-tower case that supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards. The airflow-optimized steel front panel and mesh top panel prioritize intake volume over acoustic dampening.
GPU length clearance reaches 420mm, which accommodates the RTX 4090 in reference and most extended triple-fan designs. CPU cooler height clearance reaches 170mm, and PSU length clearance reaches 225mm.
Two 120mm AirGuide fans ship pre-installed at the front, with a PWM fan repeater supporting up to six fans total. The case supports up to ten 120mm fans or four 140mm fans, along with a 360mm radiator at the front and a 360mm push/pull radiator at the top. Seven horizontal expansion slots and two vertical expansion slots allow either standard or vertical GPU orientation, though the vertical PCIe riser cable is sold separately. A hinged steel door conceals 25mm of cable routing space behind the motherboard tray.
Compared with the Corsair 7000D Airflow, the 5000D Airflow matches its sibling case on GPU clearance while adding E-ATX support in a smaller mid-tower footprint. Compared with the Phanteks Eclipse G500A, the 5000D Airflow provides slightly less GPU clearance but supports a larger single-radiator size at the front.
Phanteks Eclipse G500A
CHECK PRICE
PROS
CONS
| Specification | Phanteks Eclipse G500A |
|---|---|
| Case type | Mid-tower |
| Motherboard support | E-ATX (up to 280mm), ATX, Micro-ATX, Mini-ITX |
| Max GPU length | 435mm |
| Included fans | 3x 140mm PWM D-RGB (DRGB version); varies by SKU |
| Radiator support | Up to 420mm (front), up to 360mm (top) |
| Expansion slots | 7 |
| Drive bays | 9x 2.5″ SSD, up to 10x 3.5″ HDD (2 included) |
| Front I/O | USB-C 3.2 Gen 2, 2x USB 3.0 |
| Dimensions (W x D x H) | 240 x 500 x 515mm |
The Phanteks Eclipse G500A is a mid-tower case with Ultra-Fine Performance Mesh front and top panels for high-airflow builds. The case supports E-ATX motherboards up to 280mm wide, along with ATX, Micro-ATX, and Mini-ITX boards.
GPU length clearance reaches 435mm, the highest rating among the mid-tower cases in this comparison, which accommodates reference and extended triple-fan RTX 4090 cards. The case ships in three fan configurations: a D-RGB version with three 140mm PWM addressable fans, a Performance version with three standard 140mm fans, and a Fanless version without pre-installed fans.
The front panel supports up to a 420mm radiator, and the top panel supports up to a 360mm radiator. Seven expansion slots accommodate multi-slot GPU coolers, and an optional vertical GPU bracket allows vertical card orientation. Storage capacity includes nine 2.5″ SSD mounting locations and up to ten 3.5″ HDD bays with additional purchased brackets, with two 3.5″ bays included by default.
Compared with the Lian Li Lancool III, the Eclipse G500A provides greater GPU clearance and a larger front radiator zone. Compared with the Corsair 5000D Airflow, the Eclipse G500A offers more GPU clearance but supports a smaller maximum radiator size at the top.
Lian Li O11 Dynamic EVO XL
CHECK PRICE
PROS
CONS
| Specification | Lian Li O11 Dynamic EVO XL |
|---|---|
| Case type | Full-tower |
| Motherboard support | E-ATX (up to 280mm), ATX, Micro-ATX, Mini-ITX |
| Max GPU length | 460mm |
| Max CPU cooler height | 167mm |
| Included fans | None (barebones) |
| Radiator support | Up to 420mm each on top, side, and bottom |
| Expansion slots | 8 |
| Drive bays | 3x 2.5″ (behind tray), 4x 3.5″/2.5″ (drive cage) |
| Weight (empty) | Approximately 17kg |
The Lian Li O11 Dynamic EVO XL is a full-tower case with a dual-chamber layout and an adjustable motherboard tray that moves across three height positions. The case supports E-ATX motherboards up to 280mm wide, along with ATX, Micro-ATX, and Mini-ITX boards.
GPU length clearance reaches 460mm, the highest rating among the six cases in this comparison, which accommodates the RTX 4090 in every current reference and aftermarket card length. CPU cooler height clearance reaches 167mm.
The case ships without pre-installed fans and supports up to eleven fans total: three 120mm or 140mm units each at the top, side, and bottom panels, plus two 120mm units at the rear. Radiator support reaches 420mm at the top, side, and bottom simultaneously, for a maximum of three 420mm radiators in a single build. Eight expansion slots support a tool-free horizontal GPU mounting system, and an optional bracket allows upright or vertical GPU orientation. Reverse mode allows the left and right side panels to swap position for alternate desk placement.
Compared with the Fractal Design Torrent, the O11 Dynamic EVO XL provides greater GPU clearance and radiator capacity but ships without pre-installed fans. Compared with the Corsair 7000D Airflow, the O11 Dynamic EVO XL offers 130mm more GPU clearance and E-ATX support, though it requires a separate fan purchase to match the Corsair’s out-of-box cooling.
How To Choose PC Case for RTX 4090
Choose a case with at least 350mm of GPU length clearance and a mesh front panel with two or more 120mm-equivalent intake fans. These two requirements address the RTX 4090’s card length and its heat output under sustained load.
GPU length clearance determines whether the card fits at all. Reference RTX 4090 cards measure approximately 304mm to 358mm depending on the manufacturer, and triple-fan aftermarket designs from board partners commonly exceed 336mm. A case rated below 350mm of clearance excludes several popular aftermarket models, so a rating of 400mm or higher removes this constraint for nearly all available cards.
Airflow design affects sustained GPU temperature during extended workloads. A front or floor-mounted mesh intake with two or more fans reduces intake air temperature compared with a solid front panel, which lowers GPU hotspot temperature during multi-hour gaming or rendering sessions. Cases with floor-mounted intake fans, such as the Fractal Design Torrent, direct cool air toward the GPU cooler shroud directly.
Motherboard compatibility should match the intended build. A standard ATX build fits in any of the six cases reviewed above, while an E-ATX motherboard requires confirming the width rating, since several E-ATX cases in this comparison cap support at boards under 280mm wide.
PSU shroud clearance and CPU cooler height clearance affect component selection beyond the GPU itself. A 170mm minimum cooler clearance accommodates most tower air coolers, and a 220mm minimum PSU clearance fits ATX power supplies up to 1200W, which covers the recommended power budget for RTX 4090 systems.
