The Intel Core i5-14600K is a 14-core processor with 6 Performance-cores and 8 Efficient-cores, a 125W base power rating, and a maximum turbo power (PL2) of up to 181W under stock Intel specifications. This power profile places the i5-14600K above mainstream mid-range CPUs and closer to high-end thermal territory, particularly when a motherboard applies an unlocked or extended power limit. Matching this processor with an undersized cooler causes thermal throttling, reduced sustained clock speeds, and higher fan noise during gaming or multi-threaded workloads.
Selecting the right cooler for the i5-14600K depends on case airflow, radiator or heatsink clearance, motherboard socket support for LGA1700, and the type of workload the system runs. Air coolers with dual-tower designs and six or more heatpipes handle the i5-14600K’s turbo power comfortably in most builds, while liquid coolers with 240mm or larger radiators provide additional thermal headroom for sustained all-core loads or extended power limits. Both cooling types support LGA1700 natively or through included Intel contact frames.
This article reviews six CPU coolers suited to the i5-14600K: three air coolers (Thermalright Phantom Spirit 120 SE, DeepCool AK620, and Thermalright Peerless Assassin 120 SE) and three liquid coolers (ARCTIC Liquid Freezer III 240, ARCTIC Liquid Freezer III 360, and Noctua NH-D15 G2, a premium air cooler included among the liquid-class options for its AIO-rivaling performance). Each review covers the cooler’s specifications, its behavior with the i5-14600K’s power and thermal characteristics, and a comparison against similar coolers in the same class.
The following sections detail specifications, compatibility, performance behavior, and trade-offs for each cooler, followed by a guide on how to choose among them based on case size, budget, and noise tolerance.
Best CPU Coolers for Intel i5 14600K CPU
Thermalright Phantom Spirit 120 SE
CHECK PRICE
PROS
CONS
| Specification | Thermalright Phantom Spirit 120 SE |
|---|---|
| Cooler type | Dual-tower air cooler |
| Heatpipes | 7 x 6mm nickel-plated copper |
| Base material | Nickel-plated C1100 copper |
| Fans | 2x TL-C12B V2, 120mm PWM |
| Fan speed | Up to 1,500 RPM |
| Airflow | 66.17 CFM (max) |
| Static pressure | 1.53 mmH2O (max) |
| Noise level | 25.6 dBA (max) |
| Dimensions (with fans) | 130 x 125 x 154 mm |
| Weight | 1.03 kg |
| TDP rating | 105W–280W |
| Socket support | LGA1700, LGA1200/1151/1156/1155/1150, AM4, AM5 |
The Thermalright Phantom Spirit 120 SE is a dual-tower air cooler built around seven 6mm nickel-plated copper heatpipes and a nickel-plated C1100 copper base. The heatsink uses a dual fin-stack (type-D) layout, with two TL-C12B V2 120mm PWM fans rated at up to 1,500 RPM, 66.17 CFM airflow, 1.53 mmH2O static pressure, and a maximum noise output of 25.6 dBA. The cooler measures 130mm x 125mm x 154mm with fans installed and weighs 1.03 kg. Thermalright rates the Phantom Spirit 120 SE for a TDP range of 105W to 280W, and it supports LGA1700 along with older Intel sockets and AM4/AM5.
On the i5-14600K, the Phantom Spirit 120 SE’s 280W TDP rating exceeds the CPU’s 181W PL2 turbo power, giving the heatsink margin for sustained all-core boost clocks without hitting its thermal ceiling. The type-D fan arrangement, where one fan pushes air through the first fin-stack and the second acts as a booster between the stacks, maintains airflow density through both towers even in cases with moderate front-to-back airflow. Reviewers report the Phantom Spirit 120 SE keeping similar 14-core Intel CPUs within safe thermal limits during gaming and mixed workloads, with clock behavior dependent on motherboard power-limit configuration.
Compared with the DeepCool AK620 and Thermalright Peerless Assassin 120 SE, the Phantom Spirit 120 SE uses one more heatpipe than the Peerless Assassin 120 SE (seven versus six) and matches the AK620’s six-heatpipe count with an added seventh pipe, giving it a higher rated TDP ceiling than both competitors. Its 154mm height matches the AK620 and Peerless Assassin 120 SE closely, so RAM and case clearance requirements remain comparable across all three air coolers.

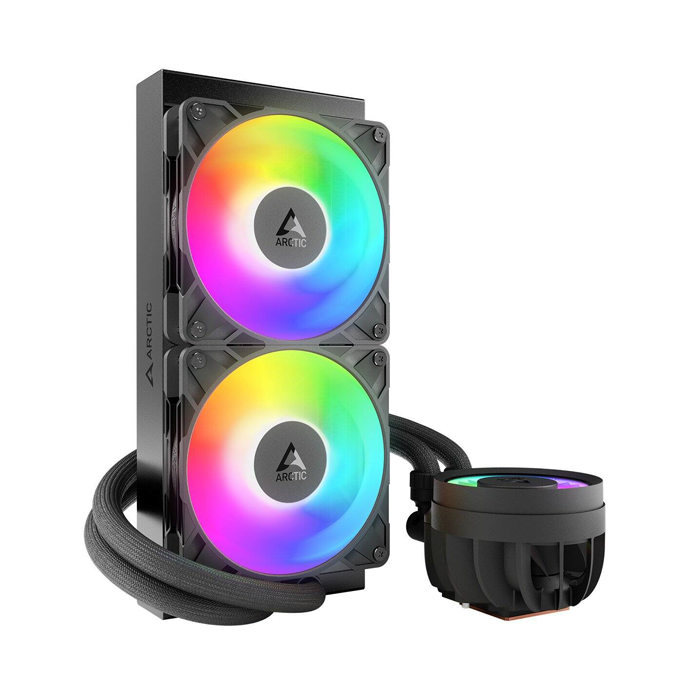

ARCTIC Liquid Freezer III 240
CHECK PRICE
PROS
CONS
| Specification | ARCTIC Liquid Freezer III 240 |
|---|---|
| Cooler type | AIO liquid cooler |
| Radiator size | 277 x 120 x 38 mm |
| Radiator material | Aluminium |
| Fans | 2x P12 PWM PST, 120mm, push configuration |
| Pump/VRM unit | 91 x 108.5 x 38 mm |
| Tube length | 450 mm |
| Thermal compound | MX-6 (included) |
| Control | Single-cable or 3-cable independent control |
| Socket support | LGA1700, LGA1851, AM4, AM5 |
The ARCTIC Liquid Freezer III 240 is an all-in-one liquid cooler with a 277mm x 120mm x 38mm radiator and two pre-installed 120mm PWM fans in push configuration. The pump and VRM fan combine into a single unit measuring 91mm x 108.5mm x 38mm, and the design integrates fan cables into the tubing jacket so only one connector reaches the motherboard. ARCTIC ships the Liquid Freezer III 240 with MX-6 thermal compound and offers both a single-cable control mode and a three-cable mode for independent control of the pump, VRM fan, and radiator fans. The cooler supports LGA1700 and LGA1851 on Intel platforms and AM4/AM5 on AMD platforms.
Intel has tested and confirmed the Liquid Freezer III series on i9-13900K/KF, i9-14900K/KF, and i9-13900KS processors in its Enthusiast and Desktop cooler categories, indicating the 240mm variant handles thermal loads well above the i5-14600K’s 181W PL2 rating. The dedicated VRM fan on the pump unit adds airflow across the motherboard’s voltage regulation area, which benefits sustained turbo behavior on boards that raise the i5-14600K’s power limits beyond Intel’s default specification. The 240mm radiator provides less surface area than the 360mm variant, so case airflow and radiator fan speed play a larger role in maintaining low temperatures under extended full-load sessions.
Compared with the Liquid Freezer III 360, the 240 model offers a more compact radiator footprint suited to smaller cases, at the cost of roughly one-third less radiator surface area. Compared with air coolers like the Phantom Spirit 120 SE and AK620, the Liquid Freezer III 240 relocates heat away from the CPU socket area entirely, which benefits airflow around tall RAM modules and PCIe slots near the CPU socket.
DeepCool AK620
CHECK PRICE
PROS
CONS
| Specification | DeepCool AK620 |
|---|---|
| Cooler type | Dual-tower air cooler |
| Heatpipes | 6 x 6mm copper |
| Base material | Copper, convex machined |
| Fans | 2x FK120, 120mm PWM |
| Fan speed | 500–1,850 RPM |
| Airflow | 68.99 CFM (max) |
| Static pressure | 2.19 mmH2O (max) |
| Noise level | ≤28 dBA |
| Dimensions (with fans) | 129 x 138 x 160 mm |
| Weight | 1,456 g |
| TDP rating | 260W max |
| Socket support | LGA1700, LGA1200, LGA115x, LGA2066, LGA2011(3), AM4, AM3(+), AM2(+), FM2(+), FM1 |
The DeepCool AK620 is a dual-tower air cooler with six 6mm copper heatpipes, a precision-machined convex copper base, and two 120mm FK120 PWM fans. The fans spin between 500 and 1,850 RPM, delivering up to 68.99 CFM airflow and 2.19 mmH2O static pressure at a rated noise level of 28 dBA or lower. The heatsink alone measures 127mm x 110mm x 157mm, while the complete assembly with fans reaches 129mm x 138mm x 160mm and weighs 1,456 grams. DeepCool rates the AK620 for a maximum TDP of 260W and lists RAM height clearance of up to 43mm in the default fan position.
The AK620’s 260W TDP rating exceeds the i5-14600K’s 181W PL2 turbo power by a wide margin, giving the cooler sufficient thermal capacity for stock and moderately raised power-limit configurations. Independent testing on similar 14-core Intel CPUs shows the AK620 maintaining competitive temperatures against other dual-tower air coolers, aided by its dense 49-fin aluminum stack per tower and checkerboard-pattern fin matrix that increases static pressure through the heatsink. The 43mm RAM clearance accommodates most tall heatsink-equipped memory modules without requiring fan repositioning.
Compared with the Thermalright Phantom Spirit 120 SE, the AK620 uses one fewer heatpipe (six versus seven) and carries a lower TDP ceiling (260W versus 280W), though both coolers deliver comparable airflow figures near 67–69 CFM. Compared with the Peerless Assassin 120 SE, the AK620 matches the six-heatpipe count but weighs more due to its denser fin array, which can affect motherboard mounting stress in cases with heavy transport or shipping.
Thermalright Peerless Assassin 120 SE
CHECK PRICE
PROS
CONS
| Specification | Thermalright Peerless Assassin 120 SE |
|---|---|
| Cooler type | Dual-tower air cooler |
| Heatpipes | 6 x 6mm AGHP copper |
| Fans | 2x TL-C12C, 120mm PWM |
| Fan speed | Up to 1,550 RPM |
| Airflow | 66.17 CFM (max) |
| Height | 155 mm |
| Weight | 0.97 kg |
| TDP rating | 265W |
| Included accessories | TF-7 thermal paste, SS2 mounting system |
| Socket support | LGA1700, LGA1851, LGA115x, LGA1200, AM4, AM5 |
The Thermalright Peerless Assassin 120 SE is a dual-tower air cooler with six 6mm AGHP (Anti-Gravity Heat Pipe) copper heatpipes and two TL-C12C 120mm PWM fans rated at up to 1,550 RPM and 66.17 CFM airflow. The cooler stands 155mm tall, carries a TDP rating of 265W, and weighs approximately 0.97 kg. Thermalright’s AGHP technology maintains heatpipe performance regardless of the cooler’s mounting orientation, which matters in cases where the motherboard sits in a non-standard position. The cooler ships with TF-7 thermal paste and Thermalright’s SS2 mounting system for Intel and AMD sockets, including LGA1700.
The Peerless Assassin 120 SE’s 265W TDP rating exceeds the i5-14600K’s 181W PL2 power by a comfortable margin, and its dual-tower design with six heatpipes handles the CPU’s turbo behavior similarly to the AK620. Independent reviews testing the Peerless Assassin 120 SE against 12th and 13th Gen Intel K-series CPUs report competitive thermal results at its price point, with the cooler positioned as a budget-focused alternative that trades minor performance headroom for a lower cost than the Phantom Spirit 120 SE or AK620.
Compared with the Phantom Spirit 120 SE, the Peerless Assassin 120 SE uses one fewer heatpipe and a slightly lower TDP ceiling (265W versus 280W), reflecting its position as Thermalright’s more budget-oriented model. Compared with the AK620, the Peerless Assassin 120 SE is lighter by roughly 480 grams, which reduces mounting stress but does not significantly change measured cooling performance for the i5-14600K’s power range.
ARCTIC Liquid Freezer III 360
CHECK PRICE
PROS
CONS
| Specification | ARCTIC Liquid Freezer III 360 |
|---|---|
| Cooler type | AIO liquid cooler |
| Radiator size | 398 x 120 x 38 mm |
| Radiator material | Aluminium |
| Fans | 3x P12 PWM PST, 120mm |
| VRM fan | 60mm, 400–2,500 RPM |
| Pump speed | 800–2,800 RPM |
| Weight | ~1,870 g |
| Tube length | 450 mm |
| Thermal compound | MX-6 (included) |
| Socket support | LGA1700, LGA1851, AM4, AM5 |
The ARCTIC Liquid Freezer III 360 is an AIO liquid cooler with a 398mm x 120mm x 38mm aluminum radiator and three P12 PWM PST 120mm fans in push configuration, plus a dedicated 60mm VRM fan on the pump housing. The pump operates at 800–2,800 RPM (PWM controlled), while the radiator fans run 200–1,800 RPM and the VRM fan runs 400–2,500 RPM. The complete assembly weighs approximately 1,870 grams, uses 450mm tubes with 12.4mm outer and 6.0mm inner diameter, and ships with MX-6 thermal compound. The cooler supports LGA1700 and LGA1851 on Intel and AM4/AM5 on AMD.
The Liquid Freezer III 360’s larger radiator surface area, compared with the 240mm variant, provides additional thermal capacity for the i5-14600K under extended all-core turbo loads or motherboard configurations that raise the CPU’s power limit beyond the default 181W PL2. Independent reviews testing the Liquid Freezer III 360 against similarly sized AIOs report competitive results at matched noise levels, with the dedicated VRM fan providing measurable benefit in cases with limited front-to-back airflow around the motherboard’s power delivery components.
Compared with the Liquid Freezer III 240, the 360 variant adds roughly 50% more radiator length and a third 120mm fan, increasing total cooling capacity at the cost of a larger case footprint. Compared with air coolers such as the Phantom Spirit 120 SE or Noctua NH-D15 G2, the Liquid Freezer III 360 removes heat from the CPU socket area more effectively during extended full-load sessions, though air coolers remain simpler to install and do not carry the pump-failure risk inherent to liquid systems.
Noctua NH-D15 G2
CHECK PRICE
PROS
CONS
| Specification | Noctua NH-D15 G2 |
|---|---|
| Cooler type | Dual-tower air cooler |
| Heatpipes | 8 x 6mm copper, soldered |
| Base material | Nickel-plated copper |
| Fans | 2x NF-A14x25r G2, 140mm PWM |
| Fan speed | Up to 1,500 RPM |
| Airflow | ~91.6 CFM (155.6 m³/h) |
| Static pressure | 2.56 mmH2O |
| Noise level | 24.8 dBA |
| Dimensions | 150 x 152 x 168 mm |
| Weight | 1,525 g |
| TDP rating | 250W |
| Socket support | LGA1700, LGA1851, LGA1200, LGA115x, AM4, AM5 |
The Noctua NH-D15 G2 is a dual-tower air cooler with eight 6mm copper heatpipes soldered to the fin stacks, a nickel-plated copper base, and two NF-A14x25r G2 140mm PWM fans. The fans run up to 1,500 RPM, delivering 155.6 m³/h (approximately 91.6 CFM) of airflow, 2.56 mmH2O static pressure, and a rated noise level of 24.8 dBA. The cooler measures 150mm x 152mm x 168mm and weighs 1,525 grams. Noctua rates the NH-D15 G2 for up to 250W of thermal load and includes NT-H2 thermal compound, a SecuFirm2+ Torx-based mounting system, and an offset construction that clears the top PCIe x16 slot on most motherboards.
The NH-D15 G2’s 250W TDP rating and eight-heatpipe design place it well above the i5-14600K’s 181W PL2 turbo power, and its soldered fin-to-heatpipe joints avoid the gradual thermal-interface degradation that can affect press-fit heatsinks over years of use. Noctua states the increased heatpipe count over the original NH-D15 provides the largest performance benefit at extreme heat loads of 250W and beyond, which exceeds the i5-14600K’s stock power envelope even under motherboard-extended limits. The asymmetrical fin-stack design and recessed lower fins provide at least 59mm of RAM clearance without requiring fan repositioning.
Compared with the ARCTIC Liquid Freezer III 240 and 360, the NH-D15 G2 delivers thermal performance that Noctua describes as rivaling AIO liquid coolers, without the pump, tubing, or radiator-mounting requirements of a liquid loop. Compared with the Phantom Spirit 120 SE, AK620, and Peerless Assassin 120 SE, the NH-D15 G2 uses larger 140mm fans and two additional heatpipes, resulting in a taller, heavier cooler with a correspondingly higher price point.
How to Choose a CPU Cooler for i5 14600K
Choosing a CPU cooler for the i5-14600K depends on matching the cooler’s rated TDP to the CPU’s 181W PL2 turbo power, verifying case clearance for the cooler’s height or radiator size, and confirming LGA1700 socket support. A cooler rated below 180W TDP risks thermal throttling under sustained all-core turbo, while coolers rated at 250W or higher, such as the DeepCool AK620, Thermalright Peerless Assassin 120 SE, Noctua NH-D15 G2, or either ARCTIC Liquid Freezer III model, provide sufficient headroom for stock and moderately raised power-limit configurations.
Case size determines whether an air cooler or an AIO liquid cooler fits the build. Air coolers such as the Phantom Spirit 120 SE, AK620, Peerless Assassin 120 SE, and NH-D15 G2 require 154mm to 168mm of vertical clearance inside the case but avoid the radiator-mounting requirements of a liquid loop. Liquid coolers such as the Liquid Freezer III 240 and 360 require a case with 240mm or 360mm radiator mounting points and adequate front, top, or rear panel space.
Noise tolerance affects the choice between fan sizes and rated dBA levels. The Noctua NH-D15 G2 offers the lowest noise ceiling at 24.8 dBA among the reviewed coolers, followed closely by the Thermalright Phantom Spirit 120 SE at 25.6 dBA. The ARCTIC Liquid Freezer III models add a dedicated VRM fan that runs independently of the CPU cooling fans, which can be configured for lower speeds in quiet-focused builds.
Budget constraints separate the six coolers into two general price tiers. The Thermalright Peerless Assassin 120 SE and DeepCool AK620 occupy the value tier, delivering TDP ratings above the i5-14600K’s turbo power at a lower price than the Phantom Spirit 120 SE or Noctua NH-D15 G2. The ARCTIC Liquid Freezer III 240 and 360, along with the Noctua NH-D15 G2, occupy a higher price tier that reflects additional radiator surface area, VRM cooling, or premium fan and heatpipe engineering.
